Originally designed in 2019 by LAZYDESIGNERS, Dimple enters its next chapter with a brand-new design, now launching its third group buy!
This round has two versions. One with a sandblasted clear pc tophousing, an aluminum inner frame and aluminum bottom case. The other is aluminum tophousing with aluminum bottom.
Schedule
- Dimple Groupbuy R3 is from Aug 6 to Aug 16. Please fillout the order from here.
- Invoicing during Aug 6- Aug 16. Unpaid orders will be cancelled after Aug 18.
- Orders will be placed to the manufacturer after Aug 18. Progress will be announced in announcement channel and Dimple R3 channel on discord server.
- Estimated time of shipping: December 2025.
Important
- This groupbuy is only available in LAZYDESIGNERS discord server. All informations about this groupbuy will be announced in the discrod server. Please make sure you are reachable by discord message.
- Orders can not be changed or cancelled after payment is done. Please make sure you have taken a careful consideration before you place an order.
- Estimated time of shipping is not an actual time for shipping. The groupbuy could be delayed. There is not guarantee that the groupbuy order will be shipped at that time. Please remember to check the progress on discord server.
- During the manufacuring of keyboards, some small flaws of the products are inevitable. Please reconsider of placing orders if you are very sensitive to any small flaws.
- The delivery address is the one showed on PayPal. All orders will be shipped to those addresses by default. Tracking number will be provide after the package is sent via discord message.

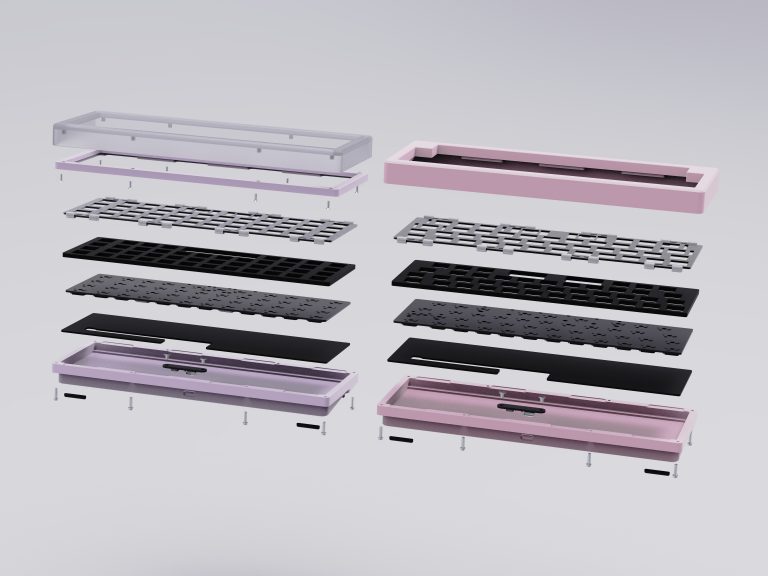

Kit includes
The kit includes
- Tophousing and bottom case
- Plate
- PCB
- Poron plate foam
- Poron bottom foam
- Rubber feet
- Storage case
Poron plate foam has only default layout, needs extra cut for compatible layouts by yourself.
Layout options

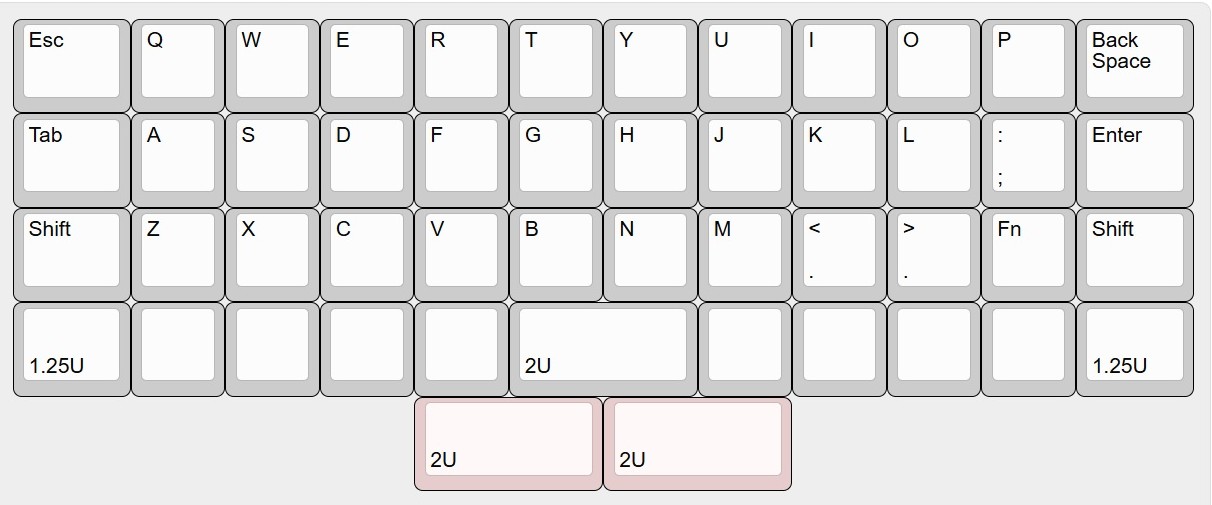

- Regular (Ortho)

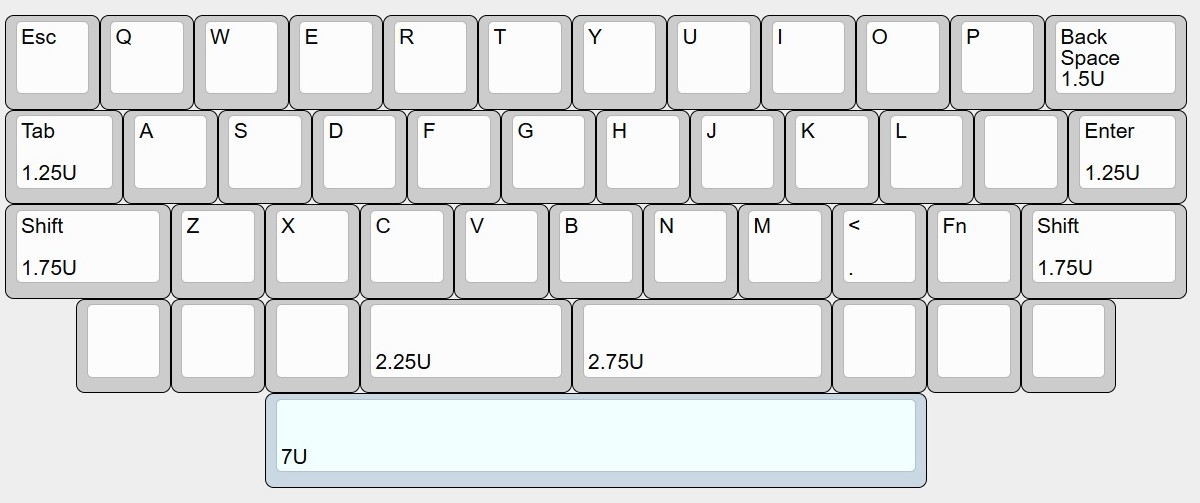

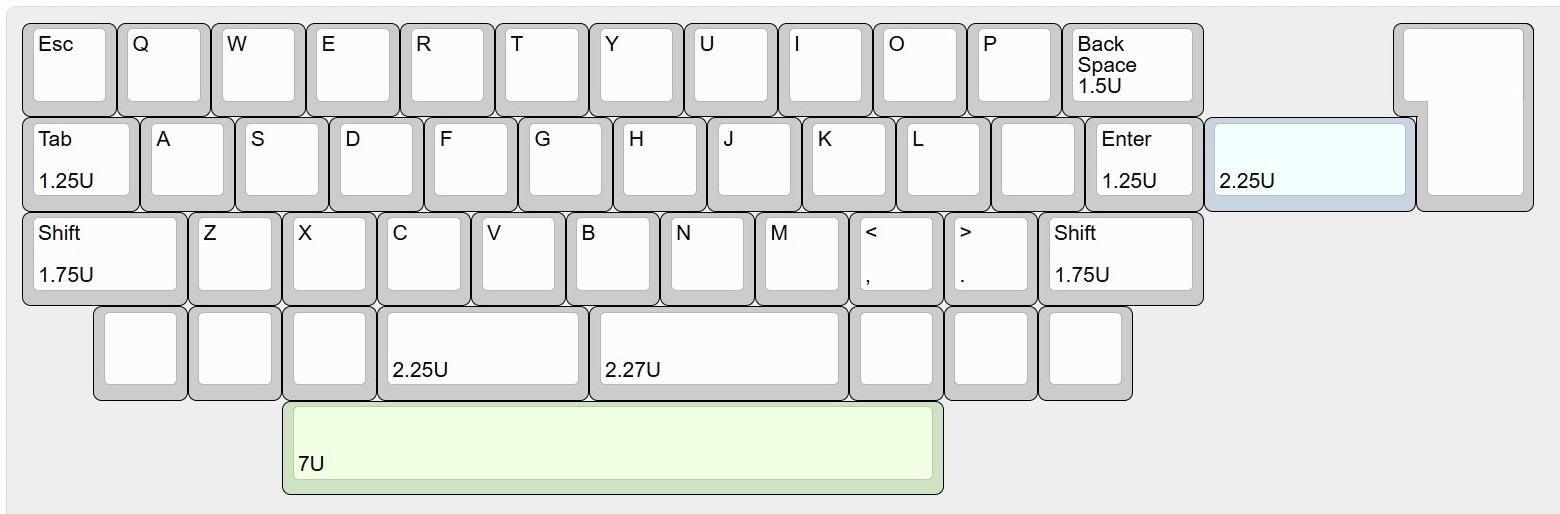

- HHKB

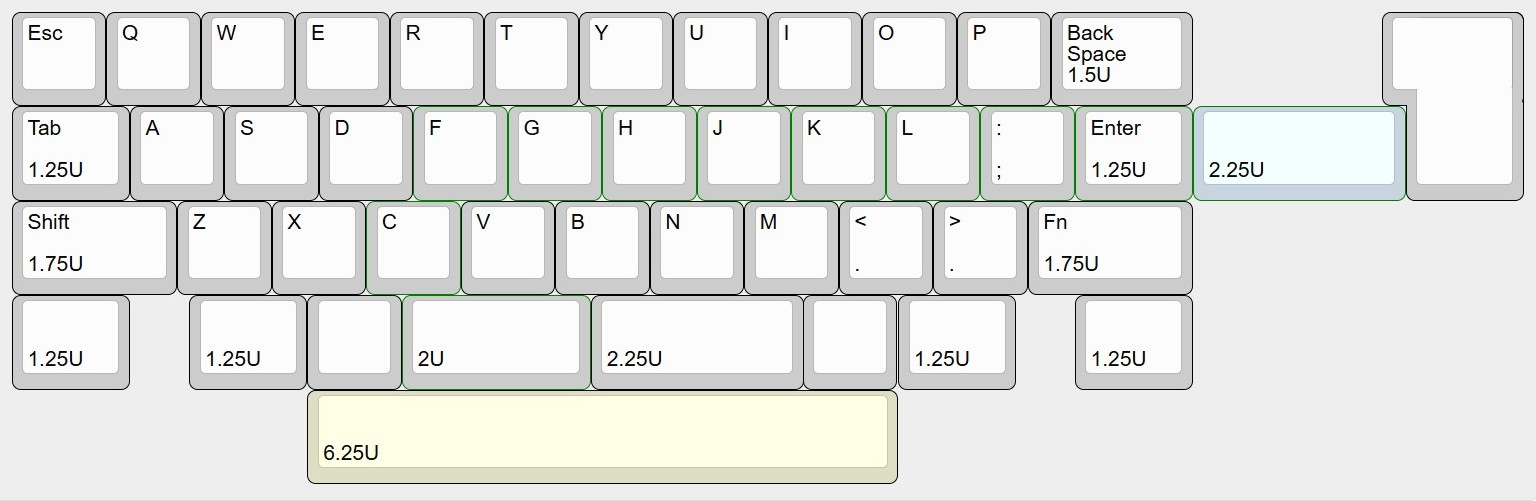

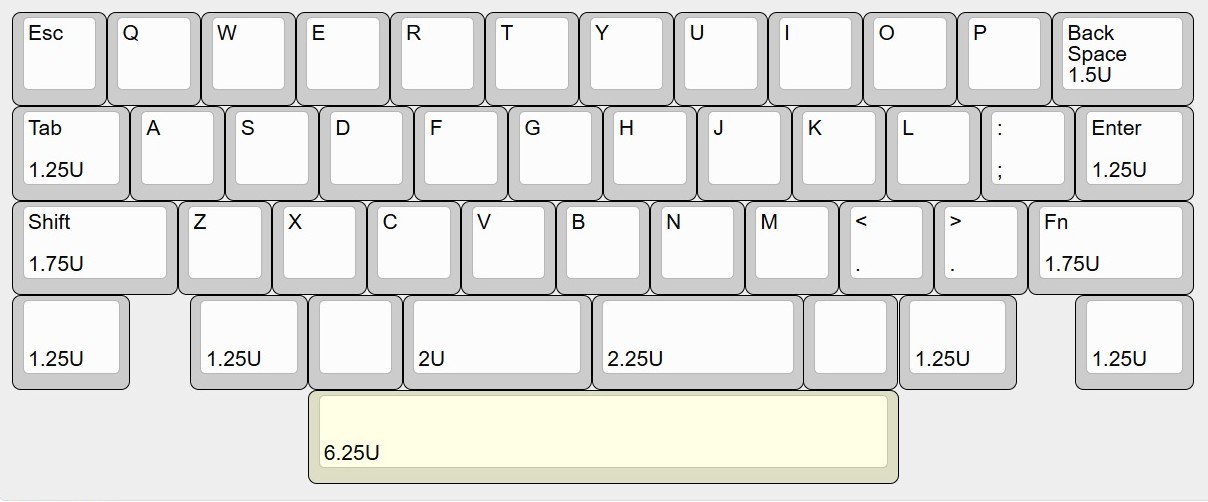

- WKL

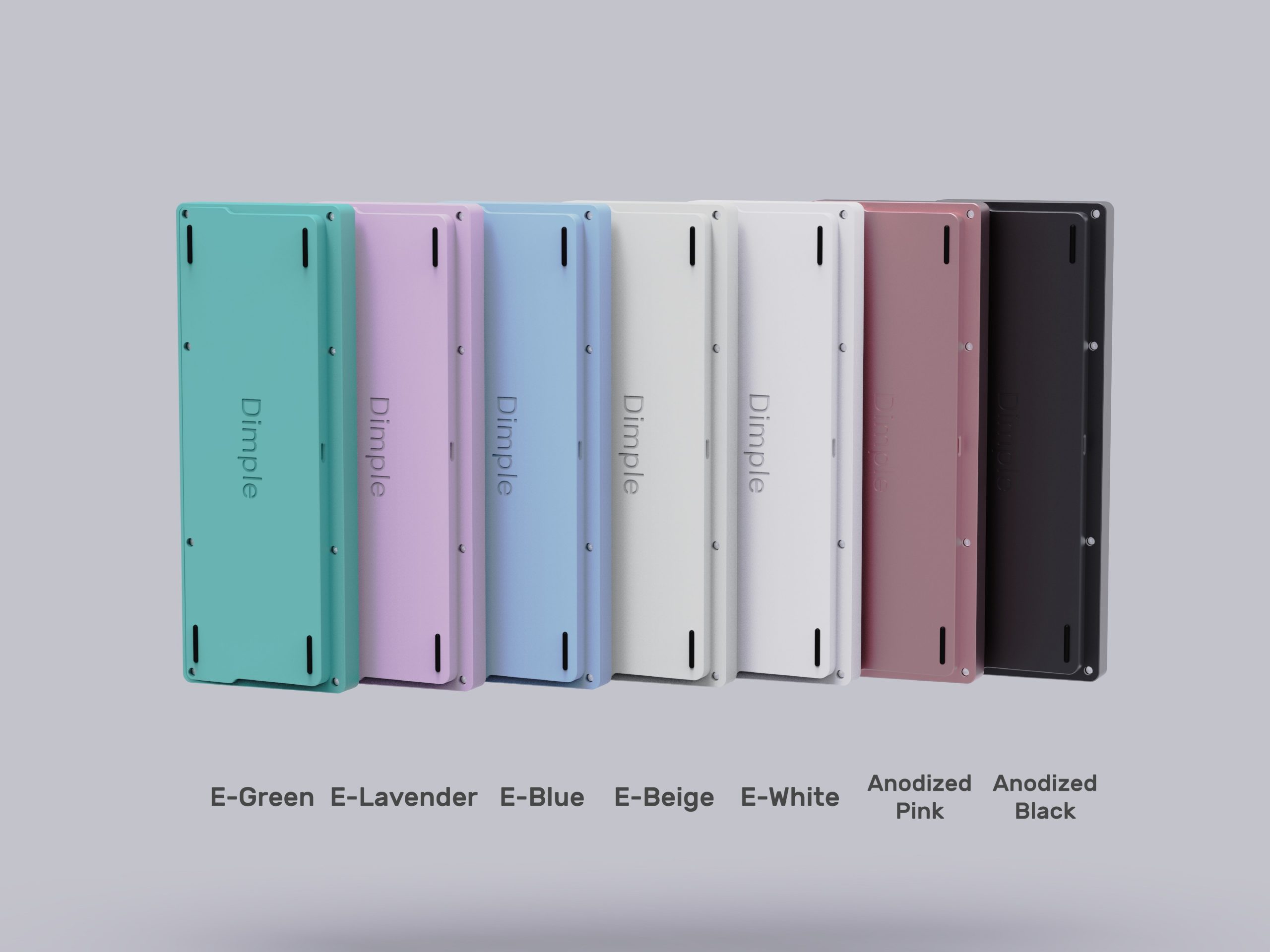

Case color options
Available colors for case
- Anodized Black
- Anodized Pink
- E-Green
- E-Lavender
- E-Blue
- E-Beige
- E-White
For PC tophousing version Dimple, the middle inner frame will be the same color as the bottom case.
PCB options
- HHKB Hotswap
- HHKB Solder
- Ortho Hotswap
- WKL Hotswap
- WKL Solder
1.6mm thickness PCB, and support for screw-in(PCB) stabilizers.
Default firmware is vial.
Plate options
- Aluminum HHKB Hotswap Plate (2.25+2.75 Bar)
- PC HHKB Hotswap Plate (2.25+2.75 Bar)
- Aluminum HHKB Hotswap Plate (7U Bar)
- PC HHKB Hotswap Plate (7U Bar)
- Aluminum HHKB Solder Plate
- PC HHKB Solder Plate
- Aluminum Ortho Hotswap Plate (2x2U Bar)
- PC Ortho Hotswap Plate (2x2U Bar)
- Aluminum Ortho Hotswap Plate (Middle 2U Bar)
- PC Ortho Hotswap Plate (Middle 2U Bar)
- Aluminum WKL Hotswap Plate (2U +2.25U Bar)
- PC WKL Hotswap Plate (2U +2.25U Bar)
- Aluminum WKL Hotswap Plate (6.25U Bar)
- PC WKL Hotswap Plate (6.25U Bar)
- Aluminum WKL Solder Plate
- PC WKL Solder Plate
Aluminum plates are anodized in black.
Total Price
Groupbuy price
- Dimple R3 kit (Solder PCB) 205 USD
- Dimple R3 kit (Hotswap PCB) 215 USD
Other options
- Extra Plate 6 USD
- Extra Hotswap PCB 25 USD
- Extra Solder PCB 15 USD
Shipping rate to Canada, UK, Australia and some of EU countries is 38 USD. Shipping rate for other countries can be checked here https://lazydesigners.cn/shippingrate/ .
The total price of a solder kit will be 205+38=243 USD
For US customers, there will be an additional 20USD ‘processing service’ fee per kit.
The total price of a solder kit to US will be 205+20+38=263 USD.
Carrier and Shipment
- All kits sold will be shipped by SF Express. You can check the availibity of shipping and shipping rate here: https://lazydesigners.cn/shippingrate/ .
- If extra items are added, they probably will raise the weight or dimension of the package. The shipping rate could change. The shipping rate will be confirmed when invoicing.
- The default shipping address is the one in PayPal. All orders will be shipped to the addresses showed in PayPal. If you want to use address other than that, please DM Jacky.
